Sporamic®
Unprecedented capabilities in
the harshest environments
Unmatched Ceramic Insulation Technology
Sporian has developed state-of-the-art, high-temperature ceramic insulation technology. Sporamic® is superior to other insulation due to its high thermal radiation suppression ability. This material has a unique combination of thermal and mechanical properties that make it ideal for thermal protection systems. Sporamic® has exceptional oxidation and corrosion resistance with low density and high strength. It exhibits vibration resistance, very low moisture absorption, and low friability. Contact us directly to learn more.
Product Features:
- Maximum Use Temperature: 1600°C
- Specific Heat: 0.73 J/(gâ‹…K)
- CTE: 2.6 ppm/°C over the range 25-1000°C
- Emissivity: 0.98 (from 1080-1675 nm at 1450°C)
Sporamic® Advanced Materials in Action!
Inductively coupled plasma (ICP) testing of Sporian’s ultra-high temperature Sporamic® insulation material simulates atmospheric re-entry conditions. Special thanks to University of Texas at Austin and NASA Johnson Space Center for facilitating testing.
Applications

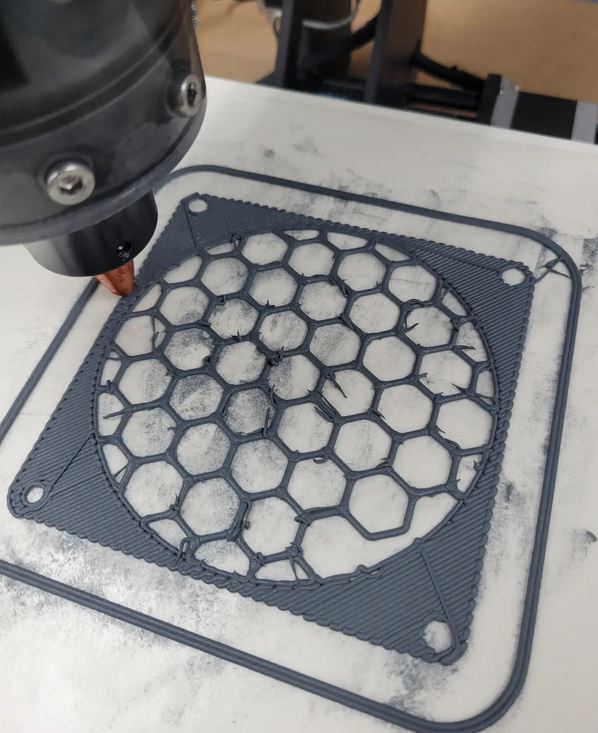

Additive manufacturing (AM)/ 3D printing
Ultra-high temperature (UHT) insulation
Polymer infiltration and pyrolysis (PIP)
Ceramic matrix composites (CMC)
