SmartCap 850 IM
Unprecedented capabilities in the world’s harshest environments
Work Hotter and Smarter
Full Feature Set up to 850°C

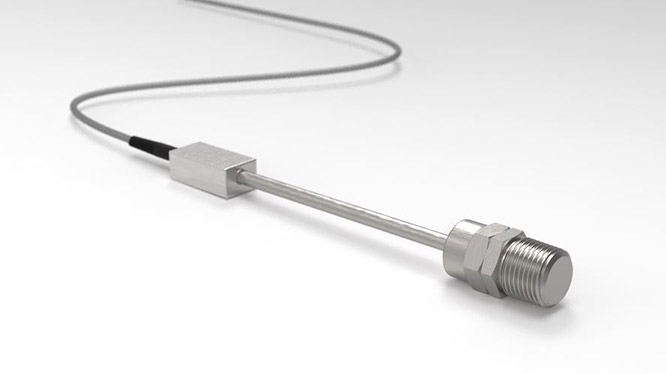

The SmartCap 850 IM is a capacitive sensor for simultaneously measuring pressure and ultra-high temperatures for extremely demanding applications such as molten salt and supercritical CO2 systems. It provides static pressure at high data rates and analyzes high frequency pressure/acoustic signals in-situ, allowing for clean installation and design with no stand-off or diaphragm lines. The sensor is engineered to be able to survive and perform in an extreme high temperature, oxidation, and corrosion environment.
Harsh Environment
Including up to 850°C and corrosive environments
High Bandwidth
Visibility into high-frequency pressure phenomena up to 17 kHz
Smart
Calibrated digital data with onboard processing. Reduce data load, improve (simplify) interface
Product Features
- Operates in extreme temperature environments
- Compatible for use in a harsh corrosive media (gases and liquids)
- In-situ capabilities enable real-time, accurate measurements
- Access to previously unavailable measurement data
- Pressure and temperature outputs
- Modifiable packaging to meet most mounting specifications
- Smart line-replaceable unit (LRU) features
- Digital interface – Easy to install/set up
- Operational temperature up to 850°C
- Static pressures up to 1500 psi
Applications
- Energy Generation Systems
- Molten Salt Materials Manufacturing
- Chemical Processing & Manufacturing
- Thermal Energy Storage
- Prognostic System Health Monitoring
- Aerospace Propulsion
- Oil & Gas
- Other High Temperature Pressure Measurement Applications
